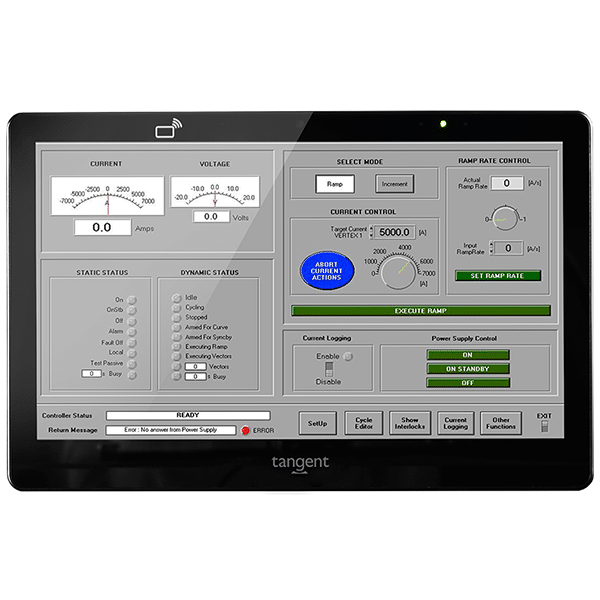

P13
13" Tablet, PCAP Touch
Wide Input Power
Fanless
Removable Li-Ion Battery
Up to 6 Hours Runtime
VESA Mount

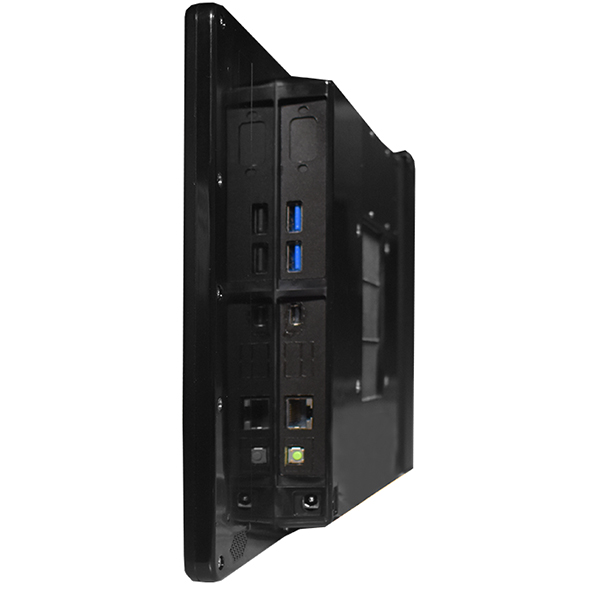

I/O Ports
P13 Features
PCAP Multi-Touch
Use with advanced applications.
Wide Input Power
Plug into voltages ranging 12-19 VDC.
Fanless
Extreme reliability, noise-free operation.

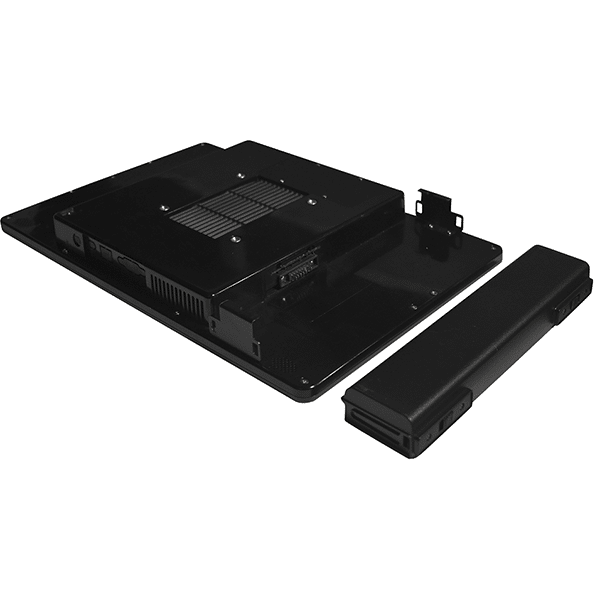

Battery
Removable battery, 6 hours runtime.
VESA
Mount anywhere, flexible install.
Technical Specifications
Spec SheetSPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 13.3" (16:9) |
| Max. Resolution | 1920 x 1080 (WUXGA) |
| Brightness (cd/m2 ) | 300 cd/m2 |
| LCD Color | 16.7M |
| Touch | |
| Touch Screen | Projected Capacitive w/10 points |
| System | |
| Processor | Intel Celeron J1900, Quad-Core, 2MB Cache, 2.0GHz |
| System Chipset | Bay Trail SoC integrated |
| Graphics Controller | Intel HD Graphics |
| LAN Chipset | 1x GbE: Realtek RTL8111 w/POE |
| Audio | Realtek ALC283 |
| System Memory | Up to 8GB DDR3L 1333Mhz (1x SO-DIMM) |
| BIOS | Phoenix 64Mbit |
| TPM | TPM 1.2 (Optional) |
| Storage | |
| SSD/HDD | 1x 2.5" SATA Bay (Optional 7mm drive only) |
| M.2 SATA | 1x M.2 2242 "B" Key For SATA SSD |
| Expansion | |
| Mini PCI Express | 2x Mini PCIe Half Length (for WiFI & POE) |
| M.2 | 1x M.2 2242 "B" Key For SATA SSD |
| Other Features | |
| Cooling Method | Fanless |
| Internal Speaker | 2x 1W Speakers |
| WebCam | 1x 2Mpixel Camera (Optional) |
| I/O | |
| Video | 1x Mini Display Port (Side) (Optional) |
| USB | 2x USB 3.0 (Side) |
| LAN | 1x GbE RJ45 w/POE (Side) |
| WLAN | 802.11 AC + BT 4.2 LE (Intel) |
| Audio | 1x Line-In/Line-Out |
| Others | 1 x Power Switch |
| Operating System | |
| Windows | Windows 7 Pro 32/64bit Windows 10 Pro 64bit |
| Linux | Ubuntu 14.10 |
| Power | |
| Power Mode | AC Adapter or POE |
| Power Input Voltage | 12 ~ 19 VDC |
| POE | 25W (802.3at, PoE+) or 50W (UPoE) from CAT-5e cables |
| Power Connector | Barrel Plug for adapter / RJ45 CAT 5e cable for POE |
| Battery | 1x Li-Ion 7.2VDC @ 9750mAh - 70.2W (Optional) |
| Power Adapter | External Power Adapter, 19VDC @ 3.42A |
| Environment | |
| Certification | CE, FCC Class A |
| Physical | |
| Enclosure Materials | ABS plastic |
| Dimension (WxHxD) | 12.9" x 8.9" x 1.3" (328 x 228 x 32.8 mm) |
| Weight | 3.75lb. (1.7Kg) |
| Mounting | VESA 75, Optional Stand |
| Warranty | |
| Warranty | 1-Year Standard |
