Rugged Mini Q V3
Fanless | Multiple Mounting Options
Ultra Mini Form Factor
Applications
Factory Automation| Mobile Carts
Rugged Mini PC Features
Fanless design in an ultra mini form factor, Rugged Mini Q v3 features an Ultra Slim Form Factor and flexible mounting. This mini-PC is ideal for mobile cart installations. Standard with one LAN, four USB, and two HDMI ports, connectivity is not a hurdle for the Rugged Mini Q v3.
Fanless
The Rugged Mini Q v3 is a fanless computer that utilizes leading passive cooling technology and mSATA storage providing totally silent operation. No moving parts makes it highly reliable and durable. This fanless computer has a sealed, ventless design that reduces potential entry points for dust, dirt, or liquids. This helps reduce the need for internal cleaning or the build-up of environmental particles inside the enclosure.
Multiple Mounts
The Rugged Mini Q v3 is able to be Wall Mounted, DIN Rail Mounted or VESA 75/100 Mounted making it extremely versatile.

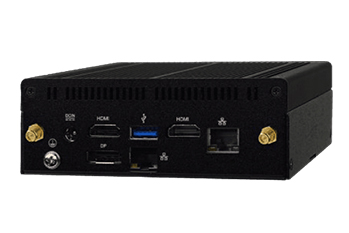

Ultra Mini Form Factor
With an ultra mini form factor of 5.08" x 4.31" x 1.33", 1.15 lb, Rugged Mini Q v3 takes up minimal space while providing reliable performance. The Rugged Mini Q v3 is ideal for installations such as on mobile carts, under a desk or on a monitor. Its small frame allows it to be easily mounted.
Rugged Mini Q V3 Tech Specs Fanless Rugged Mini PC
Spec Sheet SPECIFICATIONS
| System | |
|---|---|
| Processor | Intel Celeron J6412, Quad-Core, 1.5MB Cache, 2.0~2.6Ghz |
| System Chipset | Elkhart Lake SoC Integrated |
| Graphics Controller | Intel UHD Graphics for 10th Gen Processors |
| LAN Chipset | 2x 2.5GbE: Intel i225-V |
| Audio | Realtek ALC888 HD Audio |
| System Memory | Up to 32GB DDR4 3200 (1 x SO-DIMM) |
| BIOS | AMI 128Mbit (UEFI Only) |
| TPM | Intel PTT (fTPM 2.0) |
| Watchdog | Software Programmable Supports 10~255 sec. System Reset |
| Storage | |
| NVMe | 1x M.2 2242 "M-Key" PCIe NVMe) or SATA |
| Expansion | |
| M.2 | 1x M.2 2280 "M" Key PCIe x2(Storage) 1x M.2 2230 "E" Key PCIe x1 (WiFi) |
| Other Features | |
| Cooling Method | Fanless |
| I/O | |
| Video | 2 x HDMI 1 x DP (Display Port) |
| USB | 2x USB 3.2 Gen 2 Type C (Front) 1x USB 3.2 Gen 2 Type A (Front) 1x USB 2.0 (Front) 1x USB 3.2 Gen 2 (Rear) |
| LAN | 2 x 2.5 GbE RJ45 |
| WLAN | Intel WiFi6 Wireless AX200 + BT 5.2 LE (Optional) |
| Audio | 1 x MIC-in, 1 x Line-out |
| Others | 1 x Power Switch |
| Operating System | |
| Windows | Windows 10 IoT LTSC Windows 11 Pro Windows 11 IoT GAC |
| Power | |
| Power Input Voltage | 12 VDC |
| Power Connector | 1 x Barrel Jack (5.5 x 2.5mm) |
| Power Adapter | External Power Adapter, 12V @ 3.33A |
| Environment | |
| Operating Temp. | -4° - 140°F (-20° - 60°C) |
| Storage Temp. | -40° - 185°F (-40° - 85°C) |
| Humidity | 10% - 95%, non-condensing |
| Certification | CE, FCC, ErP For Base System CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Physical | |
| Enclosure Materials | Extruded Aluminum with Heavy Duty Steel |
| Dimension (WxHxD) | 4.92" x 4.29" x 1.75" (125 x 109.2 x 44.5 mm) |
| Weight | 1.68 lb (765 g) |
| Mounting | Wall Mount |
| Warranty | |
| Warranty | 1-Year Standard |
Rugged Mini PC
Rugged Mini PCs are built strong to withstand harsh conditions and rough handling. A Rugged Mini PC is substantially less susceptible to damage than non-rugged devices. Tangent rugged devices meet military standard specifications for dust, shock, vibration, rain, humidity, solar radiation, altitude, and temperature extremes. Tangent Mini Rugged PCs all come with powerful state-of-the-art Intel Processors and any one of our models ensures performance reliability that is unsurpassed.
OPERATING TEMPERATURES: One highly desirable feature of Rugged Mini PCs is their ability to withstand extreme temperatures. Tangent Rugged Mini PCs are functional in temperatures spanning from -40° to 158°F (-40° to 70° C).
SIZE: As the name implies, Rugged Mini PCs are compact and small. Ranging in size from 4.5" to 12.0" wide, 4.0" to 10.0" deep, and as small as 1.30" H.
ENVIRONMENTAL CONDITIONS: A waterproof Rugged Mini PC can be submersed in water and sprayed with high temperature water and steam. This is as rugged as it gets for clean room and isolation room environments.
MOBILE APPLICATIONS: Tangent In-Vehicle Mini Rugged PCs are designed specifically for use in the most demanding mobile applications.
INDUSTRY SPECIFIC REQUIREMENTS: Rugged Mini PCs designed for the healthcare industry meet 60601-1 Medical Certification standards.
