Tangent Rugged Mini PC line designed with industrial and military grade components for reliable operation under harsh conditions. Manufacturing facilities, warehouse floors, forklift and other vehicle installations are just a few environments where Tangent’s line of rugged mini PC can operate 24/7.
Built from rugged components to deliver reliability, performance, and versatility.
High-performance, fanless operation for reliability and use in dusty, industrial environments.
Fanless embedded systems for vibration and shock resistance; designed for wide temperature range operation; equipped for multiple connectivity, Tangent’s industrial mini PC line delivers extreme performance.

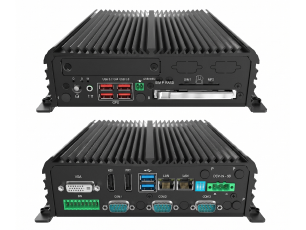

Fanless Rugged Mini PC
Intel 10th Gen. Core i7/i5/i3 Processors
2 x 260-pin DDR4 SO-DIMM, up to 64GB, Triple Independent Display, 2 x M.2 NVMe slots with RAID 1 or 1 option, 15-20VDC Wide Range Power Input, 4 x USB 3.0
Operating Temp: -14°F to 122°F (-10°C to 50°C) extended operating temperature
Rugged Mini PC
Intel Core i Raptor Lake P 28W Processor
2 x DDR5 5200MHz SO‐DIMM sockets, Max. Capacity 64 GB, 1 x 2.5" HDD/SDD (SATA 6Gb/s) , Realtek Audio codec with 2W amplifier, 2 x HDMI, 4 x USB 3.2 Gen2x1, Wall mount kit
Operating Temp: 32°F to 122°F
Supports 13th gen Intel® RPL S Processor (LGA 1700, 35W TDP)
Shock, vibration proof, 2x 2.5" SATA SSD Bay (1x Internal) with RAID 0, 1, 5 support, 1x M.2 E Key, 2230 (PCIe x1, USB 2.0), 8x DI + 8x DO with isolation
Operating temp: -13°F - 122°F (-25°C to 50°C) (35W CPU), 9 ~ 48 VDC
Intel 13th Gen. Raptor Lake Core i5/i7/i9
Shock, vibration proof, 2x 260-pin DDR5 SO-DIMM, up to 64GB, RAID, four RS 232/422/485, eight USB 3.2, 16-bit Isolated ditigal I/O and vehicle capability with an ignition sensing and power off delayed timer standard
Operating temp: -13°F - 158°F (-25°C - 70°C), 9 to 48 VDC input
Intel 9th Gen. Core i7/i5/i3
Shock, vibration proof, 2 x 260-pin DDR4 SO-DIMM, up to 64GB, RAID, four RS 232/488/485, nine USB 3.2, 16-bit isolated digital I/O and vehicle capability with an ignition sensing and power off delayed timer standard
Operating temp: -13°F - 159°F (-25°C - 70°C), 9 to 48 VDC input
Intel 8th Gen Core i7/i5
Two GbE RJ45, two RS232 & eight USB ports, one mini PCIe, one mini DisplayPort, dual drive RAID enclosure
Operating temp 14° to 122°F (-10° to 50° C), TPM
Intel® 12th Gen Alder Lake U Processor
Shock and vibration proof with SSD, 2 GbE RJ45, 2 x HDMI & 5 x USB ports
Operating temp 14°F to 122°F (-10°C to 50°C) with SSD, watchdog timer and optional TPM
Intel 7th Gen Kaby Lake U Processor
Lockable Power Jack Wide Power input (12 ~ 24VDC) Shock, vibration proof, two Gbit Ethernet ports, 2 Independent Displays, 6x COM ports, 8 IN/ 8 OUT DIO
Operating temp 14° - 131°F (-10° - 55°C) with SSD, watchdog timer
Intel 11th Gen. Mobile Processor
Two GbE RJ45, two RS232/422/485 & six USB ports, two HDMI and Two Dis
Operating temp 32°F to 122°F (0°C to 50°C) with air flow, fTPM and dTPM, watchdog timer
Dual Intel LAN, 5 x USB & two HDMI
Operating temp 14° - 122°F (-10° - 50°C) with air flow, 12 ~ 24 VDC, watchdog timer
Intel Elkhart Lake Mobile Processor
Operating temp -4° - 140°F (-20° - 60°C), 12 VDC input, watchdog timer
Intel Celeron
Shock, vibration proof, two GbE RJ45, two SIM sockets, two RS232 & four USB ports, two mini PCIe
Operating temp -13° to 158°F (-25° to 70° C), 9 to 48 VDC input
