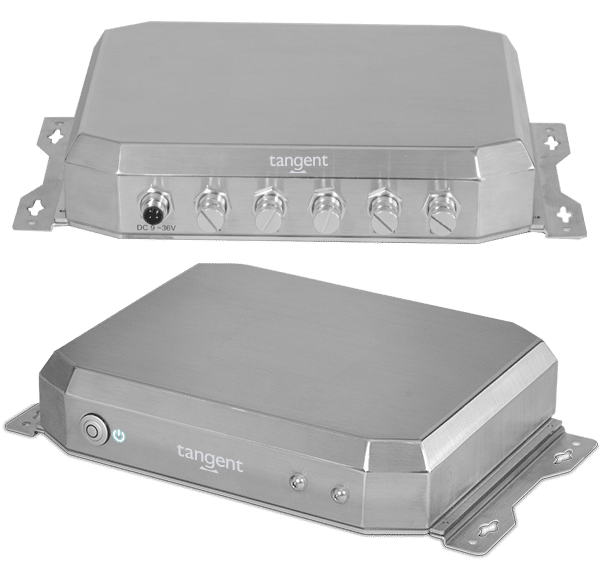

Rugged Mini O v2
Fanless | Wide Input Power
IP65 | IP67
Applications
Meat Industry | Clean Room | Isolation Room
Rugged Mini PC Features
Designed with a heavy-duty steel cover, and featuring fanless design, wide input power, and extreme temperature range operation, the Rugged Mini O v2 is built for durable, reliable operation in harsh environments. IP65 or IP67 Rating, USB and Dual LAN connectors offers quick and secure connectivity that is designed for safe operation in industrial applications, such as manufacturing and factory automation.
Fanless
The Rugged Mini O v2 is a fanless computer that utilizes leading passive cooling technology providing nearly totally silent operation. No moving parts make it highly reliable and durable. This fanless computer has a sealed, ventless design that reduces potential entry points for dust, dirt, or liquids. This helps reduce the need for internal cleaning or the build-up of environmental particles inside the enclosure.
Wide Input Power
Wide input power enables the Rugged Mini O v2 to be plugged into a wide range of voltages starting as low as 9 VDC up to 50 VDC. An advantage of wide input power is the PC’s capacity to connect to various machinery without the need to purchase additional inverters or power adapters. Applications include industrial automation, heavy-duty vehicles and defense.
IP65 | IP69K
Rugged Mini O v2's IP rating ensures protection from dust and waterproof reliability. IP65 computers are designed for all weather conditions and build with an extremely rugged Heavy-Duty Steel Cover. These units excel where consumer-grade products cannot; easily handling vibration, shock, water, moisture, oil and dust.
Rugged Mini O Tech Specs Fanless Rugged Mini PC
Spec Sheet SPECIFICATIONS
| System | |
|---|---|
| Processor | Intel Celeron N2930, Quad-Core, 2MB Cache, 1.83GHz |
| System Chipset | Bay Trail SoC integrated |
| Graphics Controller | Intel HD Graphics |
| LAN Chipset | 1x GbE: Intel 82574L |
| Audio | Realtek ALC662 chipset only (no audio output on system) |
| System Memory | 4GB DDR3L- Down Memory (Soldered on Board) |
| BIOS | AMI 64Mbit |
| TPM | TPM 2.0 |
| Storage | |
| SSD/HDD | 1x 2.5" SATA HDD Bay |
| Expansion | |
| Mini PCI Express | 1x MiniPCIe (Full Size) |
| Other Features | |
| Cooling Method | Fanless |
| Media Reader | SD Card (up to 32GB) - Internal |
| I/O | |
| Video | 1x VGA Output (M12 Connector) |
| COM | 1x DB9 Serial RS232/422/485, COM1 (M12 Connector) 1x DB9 Serial RS232, COM2 (M12 Connector) |
| USB | 2x USB 3.0 (M12 Connector) |
| LAN | 1x LAN (M12 Connector) |
| WLAN | Intel Wireless AC-7260 + BT (Optional) |
| Others | 1x Power Switch 1 x 9-30V Power Jack (M12 Connector) |
| Operating System | |
| Windows | Windows 7 Pro 32/64bit Windows 10 Pro 64bit |
| Power | |
| Power Input Voltage | 9-36 VDC |
| Power Connector | 3-pin Phoenix Connector |
| Power Adapter | External Power Adapter, 19V @ 6.31A |
| Environment | |
| Operating Temp. | -4°F - 140°F (-20°C - 60°C) |
| Storage Temp. | -40°F - 185°F (-40°C - 85°C) |
| Relative Humidity | 10% - 95% @ 40°C non-condensing |
| IP Level | IP67 Certified and IP69K Compliant |
| Certification | CE, FCC |
| Physical | |
| Enclosure Materials | Stainless Steel |
| Dimension (WxHxD) | 9.84" x 7.87" x 2.31" (250 x 200 x 58.6 mm) |
| Weight | 6.35 lb (2.88 kg) |
| Mounting | Wall Mount |
| Warranty | |
| Warranty | 1-Year Standard |
Rugged Mini PC
Rugged Mini PCs are built strong to withstand harsh conditions and rough handling. A Rugged Mini PC is substantially less susceptible to damage than non-rugged devices. Tangent rugged devices meet military standard specifications for dust, shock, vibration, rain, humidity, solar radiation, altitude, and temperature extremes. Tangent Mini Rugged PCs all come with powerful state-of-the-art Intel Processors and any one of our models ensures performance reliability that is unsurpassed.
OPERATING TEMPERATURES: One highly desirable feature of Rugged Mini PCs is their ability to withstand extreme temperatures. Tangent Rugged Mini PCs are functional in temperatures spanning from -40° to 158°F (-40° to 70° C).
SIZE: As the name implies, Rugged Mini PCs are compact and small. Ranging in size from 4.5" to 12.0" wide, 4.0" to 10.0" deep, and as small as 1.30" H.
ENVIRONMENTAL CONDITIONS: A waterproof Rugged Mini PC can be submersed in water and sprayed with high temperature water and steam. This is as rugged as it gets for clean room and isolation room environments.
MOBILE APPLICATIONS: Tangent In-Vehicle Mini Rugged PCs are designed specifically for use in the most demanding mobile applications.
INDUSTRY SPECIFIC REQUIREMENTS: Rugged Mini PCs designed for the healthcare industry meet 60601-1 Medical Certification standards.
