Rugged Mini L1
Fanless | Wide Temp Operation
Ultra Slim Form Factor
Applications
Video Display | Signage | Mobile Carts
Rugged Mini PC Features
Rugged Mini L1, fanless rugged mini PC is lightweight in design and offers multiple connectivity making it easy to handle and mount in various environments. This rugged mini PC makes a great solution for a desktop computer, office computer or compact space. Rugged Mini L1 rugged mini PC features Intel Celeron J1900 CPU, up to 2TB storage, up to 8GB DDR3L memory, three USB, three COM, and up to two LAN ports, one Mini PCIe expansion slot, and WiFi.
Fanless
Rugged Mini L1 is a fanless computer that utilizes leading passive cooling technology and SSD storage providing nearly totally silent operation. No moving parts makes it highly reliable and durable. This fanless computer has a sealed, ventless design that reduces potential entry points for dust, dirt, or liquids. This helps reduce the need for internal cleaning or the build-up of environmental particles inside the enclosure.
Wide Temp Operation
Able to withstand a wide temperature operating range of 14° to as hot as 140° F, the Rugged Mini L1 is a perfect computer for cool to hot or fluctuating temperature conditions. Applications include mobile carts, factories and behind monitors.
Ultra Slim Form Factor

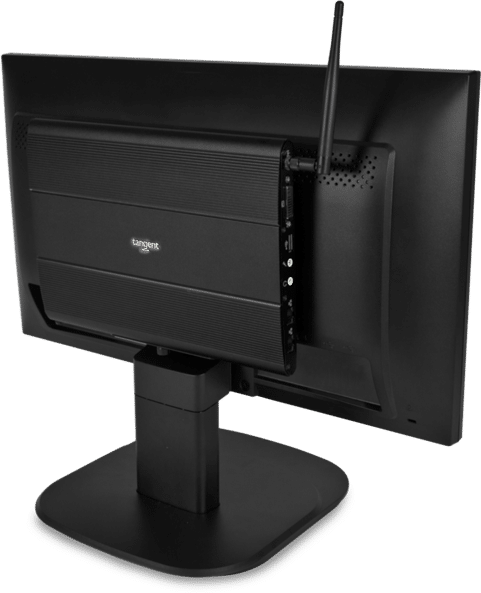

Rugged Mini L1 weighs a mere 2.9 lb and its dimensions are 10.04" W x 7.09" D x 0.75" H. This full-featured mini PC offers powerful performance in a lightweight, ultra slim design making it an ideal computer for applications on monitors or arm mounts or anywhere weight and space restrictions are factors.
Rugged Mini L1 Tech Specs Fanless Rugged Mini PC
Spec Sheet SPECIFICATIONS
| System | |
|---|---|
| Processor | Intel Celeron J1900, Quad-Core, 2MB Cache, 2.0GHz |
| System Chipset | Bay Trail SoC integrated |
| Graphics Controller | Intel HD Graphics |
| LAN Chipset | 2x GbE: Intel I210-AT |
| Audio | Realtek ALC887 |
| System Memory | Up to 8GB DDR3L 1333 (2x SO_DIMM) |
| BIOS | AMI 64Mbit |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| SSD/HDD | 1x 2.5" SATA Bay |
| mSATA | 1x mSATA (shared with 1x Mini PCIe) |
| Expansion | |
| Mini PCI Express | 1x MiniPCIe (Full Size Shared with mSATA) 1x MiniPCIe (Full Size) |
| SIM Socket | 1x Internal SIM socket |
| Other Features | |
| Cooling Method | Fanless |
| I/O | |
| Video | 1x DVI-I 1x HDMI |
| COM | 1x DB9 Serial RS232/422/485 |
| USB | 1x USB 3.0 2x USB 2.0 |
| LAN | 2x GbE RJ45 |
| WLAN | Intel Wireless AC-7260 + BT (Optional) |
| Audio | 1x Mic-in, 1x Line-out |
| Others | 1x Power Switch |
| Operating System | |
| Windows | Windows 7 Pro 32/64bit Windows 10 Pro 64bit |
| Power | |
| Power Input Voltage | 19 VDC |
| Power Connector | 1x Barrel Jack (Lockable) |
| Power Adapter | External Power Adapter, 19V @ 3.42A |
| Environment | |
| Operating Temp. | 14° - 140°F (-10° - 60°C) with SSD |
| Storage Temp. | -4° - 176°F (-20° - 80°C) |
| Relative Humidity | 10 ~ 90%, Non-condensing |
| Certification | CE, FCC, RCM, VCCI, BSMI, CB, UL, Energy Star, RoHS |
| Physical | |
| Enclosure Materials | Extruded Aluminum with Heavy Duty Steel |
| Dimension (WxHxD) | 10.04" x 7.09" x 0.75" (255 x 180 x 19 mm) |
| Weight | 2.87 lb (1.3 kg) |
| Mounting | VESA 75/100 |
| Warranty | |
| Warranty | 1-Year Standard |
Rugged Mini PC
Rugged Mini PCs are built strong to withstand harsh conditions and rough handling. A Rugged Mini PC is substantially less susceptible to damage than non-rugged devices. Tangent rugged devices meet military standard specifications for dust, shock, vibration, rain, humidity, solar radiation, altitude, and temperature extremes. Tangent Mini Rugged PCs all come with powerful state-of-the-art Intel Processors and any one of our models ensures performance reliability that is unsurpassed.
OPERATING TEMPERATURES: One highly desirable feature of Rugged Mini PCs is their ability to withstand extreme temperatures. Tangent Rugged Mini PCs are functional in temperatures spanning from -40° to 158°F (-40° to 70° C).
SIZE: As the name implies, Rugged Mini PCs are compact and small. Ranging in size from 4.5" to 12.0" wide, 4.0" to 10.0" deep, and as small as 1.30" H.
ENVIRONMENTAL CONDITIONS: A waterproof Rugged Mini PC can be submersed in water and sprayed with high temperature water and steam. This is as rugged as it gets for clean room and isolation room environments.
MOBILE APPLICATIONS: Tangent In-Vehicle Mini Rugged PCs are designed specifically for use in the most demanding mobile applications.
INDUSTRY SPECIFIC REQUIREMENTS: Rugged Mini PCs designed for the healthcare industry meet 60601-1 Medical Certification standards.
