Tangent Industrial Grade Computers UL60601 Certified

Rugged Mini G v3

Fanless | Wide Temp Operation
Multiple Input Power| Digital I/O

Applications

Video Display | Signage | Mobile Carts

Rugged Mini PC Features

Designed to handle 19 VDC system power input and wide temperature operation, Rugged Mini G v3 can be installed in a variety of industrial environments. Rugged Mini G v3 has a fanless design that is essential for dusty factory floors, and with a VESA 75/100 adapter plate, wall mounting brackets or DIN rail mounting, it offers many installation options. Standard with six COM ports, six USB ports and 8 IN/8 OUT DIO, you get maximum connectivity from this rugged industrial Mini PC.

Wide Temp Operation

Able to withstand a wide temperature operating range of 14° - 131°F (-10° - 55°C) with SSD, the Rugged Mini G v3 is a perfect computer for hot, cold, or fluctuating temperature conditions. Applications include factories and mills.

Multiple I/O Ports

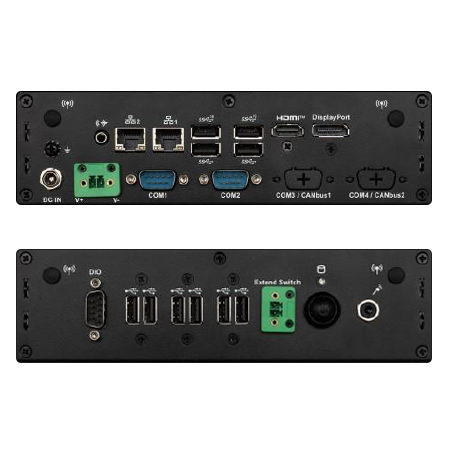

Multiple I/O Ports - Video, USB, COM, LAN - affords the Rugged Mini G v3 maximum connectivity.

Rugged Mini G v3 Tech Specs Fanless Rugged Mini PC

Spec Sheet

SPECIFICATIONS

System
Processor	Intel Alder Lake Processor N97, 4 Core, 4 Thread , 6MB Cache, up to 3.6Ghz Optional: Intel Alder Lake Core i3-N305, 8 Core, 8 Thread, 6MB Cache, Up to 3.8GHz
System Chipset	Alder Lake N SoC Integrated
Graphics Controller	Intel UHD Graphics
LAN Chipset	2 x 2.5GbE: Intel I225-V
Audio	Realtek ALC897
System Memory	Up to 16GB DDR5-4800 (1x SO-DIMM)
TPM	TPM 2.0 (dTPM Infineon)
Watchdog	Software Programmable Supports 1~255 sec. System Reset
Storage
SSD/HDD	1 x 2.5" SATA Bay
mSATA	1 x M.2 2280 "B-Key" PCIe x1 SATA Only
Expansion
M.2	1 x M.2 2230 "E" Key for WiFi 1 x M.2 2280 "B" key for SATA
Other
Cooling Method	Fanless
I/O
Video	1 x Display Port (DP) 1 x HDMI
COM	1 x DB9 Serial COM 1 RS232/422/485 1 x DB9 Serial COM 2 RS232 Optional: 2x DB9 Serial RS232 (COM 3 ~ 4) using M.2 module
USB	6 x USB 2.0 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1
LAN	2 x 2.5GbE RJ45
WLAN	Intel WiFi6 Wireless AX200 + BT 5.2 LE (Optional) Intel WiFi6e Wireless AX210 + BT 5.2 LE (Optional)
Audio	1 x Mic-in, 1 x Line-out
DIO	4 IN / 4 OUT (DB9)
Others	1 x Phoenix external power connector (2 pin) Optional: 2x CAN Bus (Alternate to COM 3 & 4) Using M.2 module
Operating System
Windows	Windows 11 Pro 64bit Windows 10 IoT Enterprise LTSC Windows 11 IoT Enterprise GAC
Power
Power Input Voltage	9 ~ 36 VDC
Power Connector	1x Barrel Jack (Lockable) 1x 2pin Phoenix Terminal Connector
Power Adapter	External Power Adapter, 19V @ 3.42A
Environment
Operating Temp.	14° - 131°F (-10° - 55°C) with SSD
Storage Temp.	-4° - 176°F (-20° - 80°C)
Relative Humidity	10 ~ 90%, Non-condensing
Shock	IEC61373 Category 1, Class B
Vibration	IEC61373 Category 1, Class B
Certification	CE, FCC, RCM, VCCI, BSMI, RoHS
Physical
Enclosure Materials	Extruded Aluminum with Heavy Duty Steel
Dimension (WxHxD)	7.87" x 5.90" x 2.16" (200 x 150 x 55 mm)
Weight	3.05 lbs. (1.39 kg)
Mounting	Wall Mount and DIN Rail Standard VESA 75/100 (Optional)
Warranty
Warranty	1-year standard

Rugged Mini PC

Rugged Mini PCs are built strong to withstand harsh conditions and rough handling. A Rugged Mini PC is substantially less susceptible to damage than non-rugged devices. Tangent rugged devices meet military standard specifications for dust, shock, vibration, rain, humidity, solar radiation, altitude, and temperature extremes. Tangent Mini Rugged PCs all come with powerful state-of-the-art Intel Processors and any one of our models ensures performance reliability that is unsurpassed.

OPERATING TEMPERATURES: One highly desirable feature of Rugged Mini PCs is their ability to withstand extreme temperatures. Tangent Rugged Mini PCs are functional in temperatures spanning from -40° to 158°F (-40° to 70° C).

SIZE: As the name implies, Rugged Mini PCs are compact and small. Ranging in size from 4.5" to 12.0" wide, 4.0" to 10.0" deep, and as small as 1.30" H.

ENVIRONMENTAL CONDITIONS: A waterproof Rugged Mini PC can be submersed in water and sprayed with high temperature water and steam. This is as rugged as it gets for clean room and isolation room environments.

MOBILE APPLICATIONS: Tangent In-Vehicle Mini Rugged PCs are designed specifically for use in the most demanding mobile applications.

INDUSTRY SPECIFIC REQUIREMENTS: Rugged Mini PCs designed for the healthcare industry meet 60601-1 Medical Certification standards.
