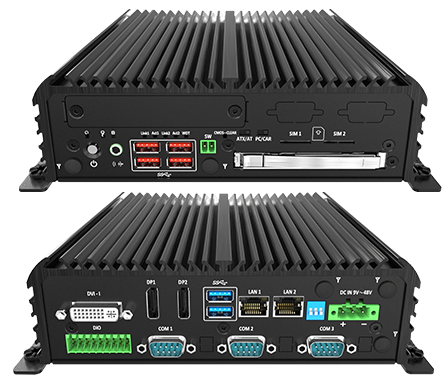

Rugged Mini E2 v2

Fanless | Wide Input Power
2 x 260-pin DDR4 SO-DIMM, up to 64GB

Applications

Video Surveillance | Factory Automation

Rugged Mini PC Features

Fanless design and rugged features in one package! Rated for shock & vibration, designed with RAID support, two LAN, three COM, and six USB ports. With no moving parts, Rugged Mini E2 v2 is reliable, low maintenance and noise-free. The internal components are protected in case of sudden movements or drops. Wide-range input power, extreme temperature operation, and watchdog timer enhance functionality. Rugged Mini E2 v2 can be installed in a variety of environments.

Fanless

The Rugged Mini E2 v2 is a fanless computer that utilizes leading passive cooling technology and SSD storage providing nearly totally silent operation. No moving parts makes it highly reliable and durable. This fanless computer has a sealed, ventless design that reduces potential entry points for dust, dirt, or liquids. This helps reduce the need for internal cleaning or the build-up of environmental particles inside the enclosure.

Wide Input Power

Wide input power enables the Rugged Mini E2 v2 to be plugged into a wide range of voltages starting as low as 9 VDC and as high as 48 VDC. An advantage of wide input power is the PC’s capacity to connect to various machinery without the need of purchasing additional inverters or power adapters. Applications include industrial automation, heavy-duty vehicles, and defense.

Extreme Temp Operation

Able to withstand an extreme temperature operating range from -13°F to 140°F, the Rugged Mini E2 v2 is a perfect computer for hot, cold or fluctuating temperature conditions. Applications include refrigerated areas within the meat or food processing industry, extremely hot factories and mills and in-vehicle applications.

Rugged Mini E2 Tech Specs Fanless Rugged Mini PC

Rugged Mini E2 Spec Sheet

SPECIFICATIONS

System
Processor Intel 9th Gen. CORE i7/i5/i3 Processors
System Chipset Intel Q370 Express Chipset
Graphics Controller Intel UHD Graphics 630 (Core CPU)
LAN Chipset 1 x GbE: Intel I210-AT
1 x GbE: Intel I219-LM
Audio Realtek ALC8885
System Memory Up to 64GB DDR4 2400 (2 x SO-DIMM)
BIOS AMI 256Mbit
Watchdog Software Programmable Supports 1~255 sec. System Reset
Storage
SSD/HDD 1 x 2.5" SATA Bay (internal)
1 x 2.5" SATA Bay (removeable)
mSATA 1 x mSATA (shared with 1 x Mini PCIe)
RAID Support RAID 0, 1, 5
Expansion
Mini PCI Express 2 x MiniPCIe (full size)
SIM Socket 2 x external SIM sockets
M.2 1 x M.2 2230 "E" Key PCI x 1 (WiFi)
Other Features
Cooling Method Fanless
I/O
Video 1 x DCI-I
2 x DisplayPort
COM 3 x D89 serial RS232/422/485, COM 1 ~ 3
2 x Internal headers RS232/422/485, COM4 & COM5
(Requires optional bracket adapter)
USB Standard Model:
4 x USB 3.2 Gen2 (Front)
2 x USB 2.0 (Internal)
LAN 2x GbE RJ45
WLAN Intel Wireless AC-9260 + BT 5.1 or Intel WiFi 6 Ax200 + BT 5.1 (Optional)
Audio 1x Mic-in, 1x Line-out
DIO 8 IN / 8 OUT (Isolated)
Others 1x Power Switch
1x AT/ATX Switch
1x Remote Power Switch (2 pin Phoenix Connector)
Operating System
Windows Windows 10 Pro 64bit
Windows 11 Pro 64bit
Power
Power Mode AT/ATX
Power Input Voltage 9-48 VDC
Power Connector 3-pin Phoenix Connector
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
RPP (Reverse Polarity Protection)
Power Adapter External Power Adapter, 24V @ 9.16A
Environment
Operating Temp. -13°F to 140°F (-25°C to 60°C)
Storage Temp. -22°F to 185°F (-30°C to 85°C)
Relative Humidity 10% - 95% non-condensing
Shock With SSD: 50 G, half sine, 11 ms
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Certification CE, FCC Class A
Physical
Enclosure Materials Extruded Aluminum with Heavy Duty Steel
Dimension (WxHxD) 7.56" x 7.75" x 2.37" (192mm x 197mm x 60.3mm)
Weight 7.93 lbs. (3.6 kg)
Mounting Wall Mount Standard
DIN Mount (optional)
Warranty
Warranty 1-Year Standard
