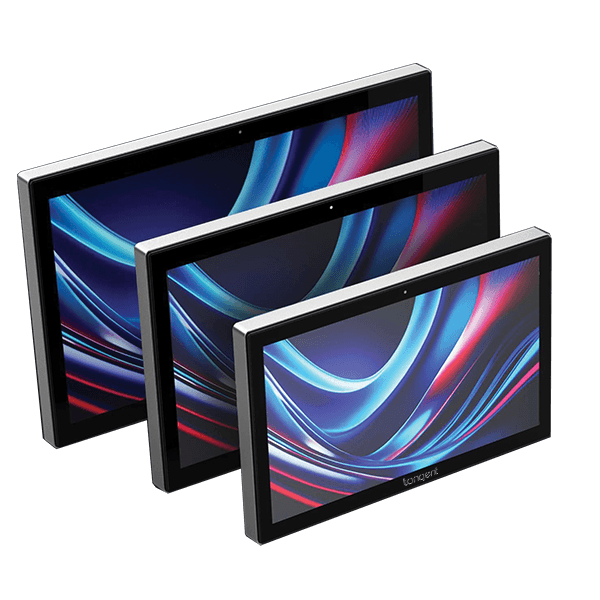

VITA KW v5
15.6”, 18.5”, 21.5” Industrial Grade Computer
Fanless Construction
Modular Design
VITA KW v5

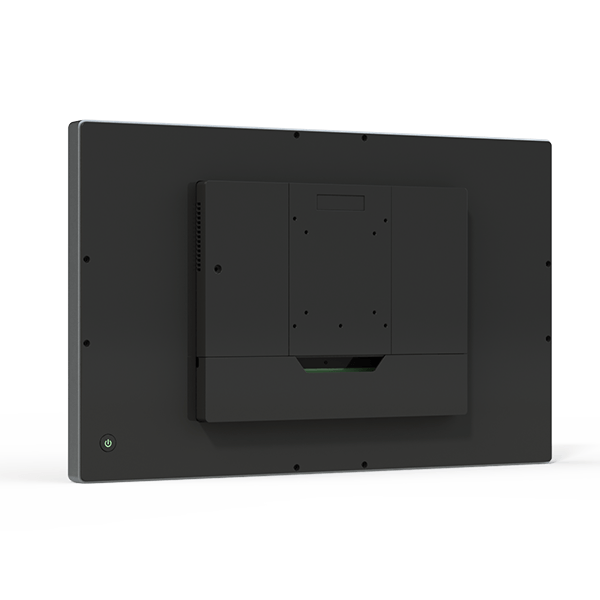

Back Panel
VITA KW v5 Features
Technical Specifications
Fanless Design
fanless, noise-free operation
Widescreen
Enhanced viewing with widescreen.
SPECIFICATIONS
| Display | ||
|---|---|---|
| LCD Size | 15.6”, 18.5”, 21.5” (16.9) | |
| Max Resolution | 1920 x 1080 (FHD) | |
| Touch | ||
| Touch Screen | Projected Capacitive | |
| Touch Controller | ILI Technology | |
| System | ||
| Processor | Intel Core Ultra 5 125U, Quad-Core, 8MB Cache, up to 42.GHz | |
| System Chipset | Tiger Lake U SOC | |
| Graphics Controller | Intel UHD Graphics | |
| LAN Chipset | 1x GbE: intel I211 1x GbE: Realtek RTL8168/8111 | |
| Audio | Realtek ALC897 | |
| System Memory | Up to 32GB DDR5 5600 (1x SO-DIMM) | |
| BIOS | Insyde 64Mbit | |
| TPM | TPM 2.0 (fTPM/ Intel PTT) | |
| vPro | vPro Essentials Only (No Enterprise support) | |
| Operating System | ||
| Windows | Windows 11 Pro Windows 11 IoT GAC Windows 10 IoT LTSC 2021 Windows 11 IoT LTSC 2024 | |
| Storage | ||
| M.2 SATA | 1 x M.2 2242/2280 “M” Key SATA III (Shared with NVMe below) | |
| M.2 NVMe | 1x M.2 2280 “M” Key (1x PCIe x4 NVMe) | |
| Expansion | ||
| M.2 | 1 x M.2 (E key) supports M.2 2230 (Wi-Fi or LAN2) (See note) NOTE: The M.2 E can be used interchangeably by a secondary LAN adapter, or by a WiFi card. Only one can be used at a time. | |
| Other Features | ||
| Cooling Method | Fanless | |
| Internal Speaker | 1x 3W speakers | Physical |
| Enclosure Materials | Cast Aluminum, antimicrobial enclosure | |
| Dimension (W x H x D) | 536 x 328 x 48 mm (21.1” x 12.9” x 1.9”) | |
| Weight | 21.4”: 17.6lb | |
| Mounting | VESA 75 and 100, Optional Stand | |
| I/O | ||
| Video | 1x FeDP (Proprietary Mini Display Port) | |
| COM | 3x RJ48 (Powered RS232 0V/5V/12V BIOS selectable) | |
| USB | 4x USB 3.0 (Type A) 1x USB 3.0 (Type C) PD source 5V(3A) / 12V(3A) 2x USB 2.0 (Type A) | |
| LAN | 1x GbE RJ45(Standard) 1x GbE RJ45(Optional, not available if WiFi is Selected) | |
| WLAN | Optional: 802.11 AX BT 5.1 LE (Intel AX210) Note: Not available if LAN2 is selected | |
| Others | 1 x Power Switch (Back of bezel) 1x Reset Button 1z RJ11 Cash Drawer Port | |
| Power | ||
| Power Input | 12 ~ 48 VDC | |
| Power Connector | 4pin Mini-DIN | |
| Power Adapter | External Power Adapter, 20V @ 6A | |
| Environment | ||
| Operating Temp | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | |
| Humidity | 20% to 85% non-condensing | |
| Shock | With SSD: 15 G, half sine, 11 ms | |
| Vibration | With SSD: 5 Grms, 5-500 Hz, 15 min/axis | IP Level | IP65 (Front panel) | Certification | FCC Class B, CE Mark, LVD |
| Warranty | ||
| Warranty | 1-Year Standard | |
