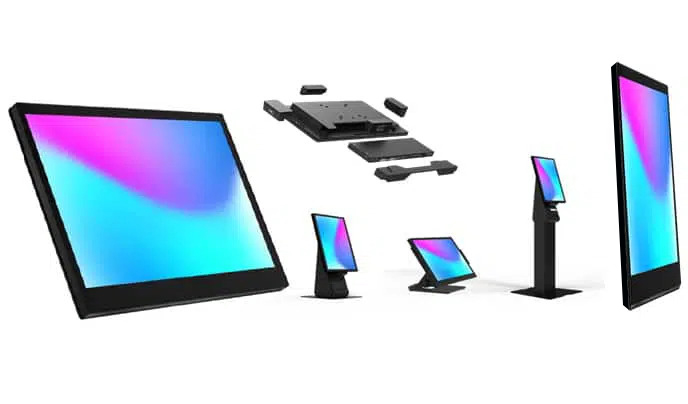

VITA K Android
12", 15", 19", 22"
Fanless Construction
Modular Design,
Multiple Peripherals
Also available in Windows

VITA K Android Features

Industrial Grade

Metal enclosure offers rugged housing for use in harsh environments.

Widescreen

Enhanced viewing with 12", 15", 19" or 22" widescreen.

IP65 Rated.

rated front panel offers dust and water resistance.

Fanless Design

12", 15", 19", 22" offer fanless, noise-free operation

VESA Mounting

VESA mounting capability offers installation flexibility

Technical Specifications

12", 15",19",22" Vita K Android Spec Sheet

SPECIFICATIONS

Display
LCD Size 11.6", 15.6", 18.5" 21.5" (16:9)
Max. Resolution 1920 x 1080 (FHD) for 11.6", 15.6" & 21.5
1366 x 786 (HD) for 18.5"
Touch
Touch Screen Projected capacitive w. 5 points (Optional)
System
Processor Qualcomm Snapdragon 660 CPU
System Chipset 4 core Kyro 260 Gold (Cortex-A73)
4 core Kyro 260 Silver (Cortex-A53)
Graphics Controller Adreno 512
LAN Chipset 1 x 10/100 LAN
Audio Hexagon 680 DSP
System Memory 4GB LPDDR4
Operating System
Linux Android 10
Storage
SSD/HDD 64GB eMMC
Other Features
Cooling Method Fanless
Internal Speaker 1 x 1W speaker (Left side only)
Camera 5Mpixel (Optional w/Mic)
I/O
Video 1 x MiniDP out (FeDP – Proprietary)
1 x DP via USB-C (requires converter cable)
COM 2 x DB9 RS232 Serial Ports
USB 2 x USB 3.0 (Type A)
2 x USB 3.0 (Type C)
2 x USB 2.0 (Type A)
LAN 1 x 10/100 LAN RJ45
WLAN 802.11 AC + BT 4.2 LE
Others 1 x RJ11 Cash Drawer Output
Optional Accessories:
5Mpixel Webcam w/Mic
3-Track MSR
RFID/NFC Reader
2D Scanner
Fingerprint Reader (Digital Persona)
Light Bar

NOTE: 11.6” Model supports 1x accessory (Bottom only)
15.6", 18.5" and 21.5" Models can support 3x
accessories (Sides and Bottom)
Power
Power Input Voltage 19 VDC
Power Connector 4pin Mini DIN
Power Adapter External Power Adapter, 19V @ 3.42A
Environment
Operating Temperature 32°F to 95°F (0°C to 35°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Relative Humidity 20% - 85% non-condensing
Certification Ce Mark Class A, FCC Class A, LVD
Physical
Enclosure Materials ABS + PC plastics enclosure
Dimension (WxHxD) 11.6": 8.4" x 7.1" x 1.6" (277 x 180.5 x 40.8mm)
15.6": 14.9" x 9.3" x 1.7" (370 x 235 x 42.3mm)
18.5": 17.8" x 10.8" x 2.0" (453 x 273 x 50.2mm)
21.5": 20.4" x 12.2" x 1.9" (518 x 310 x 49.3mm)
Weight 11.6": 3.1 lbs.
15.6": 6.6 lbs.
18.5": 9.7 lbs.
21.5": 11.7 lbs.
Mounting VESA 75 & 100
Optional Stands:
POS Stand
Printer Stand
Floor Stand w/ Printer Mount
Warranty
Warranty 1-Year Standard
