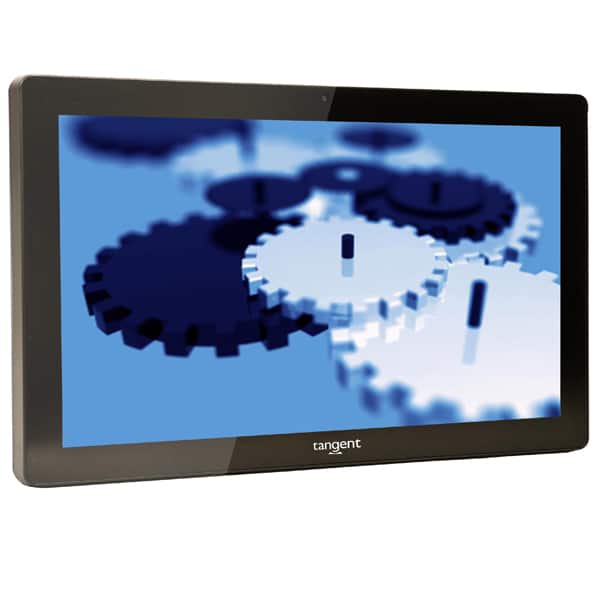

VITA 474
19" Industrial Panel PC
Rated up to 122°F / 50°C
IP64 Water-Resistant
Fanless Design
VITA 474 Features
Voltage Range
Wide input voltage range allows for integration into more environments.
Extreme Operation
Unit can operate at extreme temperature ranges.
IP64 Rated.
IP64 rated front panel offers protection against dust and water splash.
Fanless Design
Fanless Design offers extreme relability with noise-free operation.
Data Input
Optional MSR, RFID reader(MiFare)
Technical Specifications
VITA 474 Spec SheetSPECIFICATIONS
| Display | 18.5" LCD, 1366 x 768 (16:9) LED backlit LCD, non-glare PCAP multi-touch (10 pt) | I/O Ports | 4x USB 3.0 1x Serial RS232/422/485 (DB9) 1x Serial RS232 (DB9) 2x RJ45 (LAN) 1x HDMI(out) Audio ports (line-in/out) |
| Processor | Intel 6th Gen Core i5, Intel Celeron (fanless design) | Expansion Slots | 1x Mini PCIe |
| Chipset | Intel Skylake U SOC | Multimedia | 2.0 Mpixel Camera |
| Operating System | Windows 10, Windows 7 | I/O Devices | Optional: MSR, RFID (MiFare) |
| Storage | 1x 2.5" HDD/SSD Up to 2TB 1x mSATA Up to 1TB 1x M.2 (M key) supports M.2 2280 | Dimensions / Weight | 18.58" W x 11.49" H x 2.68" D 16.1 lbs |
| Video | Intel HD Graphics 520 (Core i5) Intel HD Graphics (Celeron) | Enclosure | Fanless design IP64 Front panel |
| Memory | Up to 32GB DDR4 (2x SO-DIMM) | Mounting | VESA 75/100 |
| Audio | Integrated HD audio (Realtek) Integrated speakers | Accessories | Optional: Stand |
| Network Interface | 1x Gbit Ethernet (Intel i219) 1x Gbit Ethernet (Intel i211) | Environmental Specs: Operating & Storage temps, Humidity | Operating temp: -4ºF - 122ºF (-20ºC - 50ºC) Storage temp: -4ºF - 140ºF (-20ºC - 60ºC) Humidity: 10% - 95% non-condensing |
| Wireless | Atheros 802.11ac & Bluetooth Optional: Intel Wireless AC-7260 & Bluetooth | Certification | FCC Class B, CE |
| Power | System Input: 9-30V DC AC Adapter: Input: 100-240V AC Output: 12V, 7.1A | Limited Warranty | 1-Year parts & labor, return to depot |
