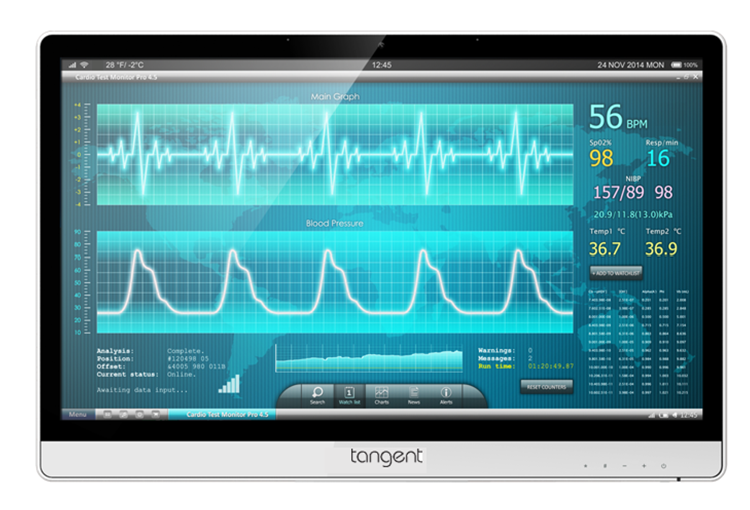

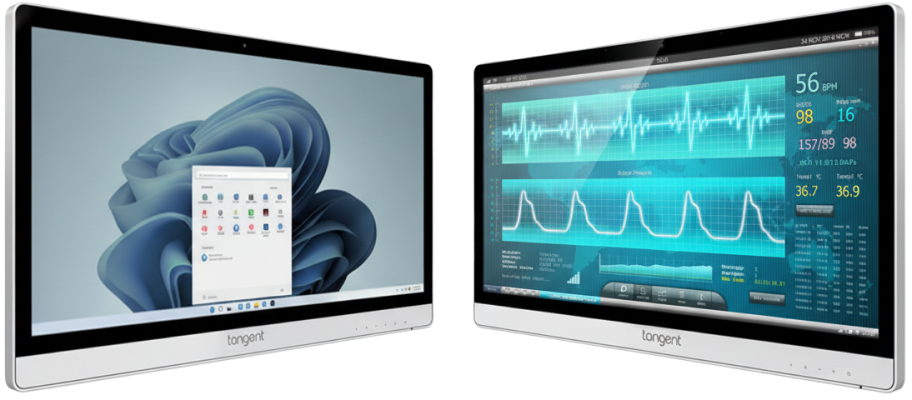

Medical LCD Monitor Features
Medical LCD monitor featuring widescreen display. PCAP 10-point touch screen, IP65 front panel, IPX1 antimicrobial enclosure, and OSD (on screen display) buttons for power, brightness, and auto tune. With VESA 75 or 100 mounting, this Medical LCD Monitor can be installed in a variety of healthcare environments.
IEC 60601-1-2 4th Edition Certification
60601 Certification ensures the safety and essential performance of medical electrical equipment.
IP65 Front Panel | IPX1 Enclousre
Can be sprayed and wiped clean without damaging the internals.
Antimicrobial Enclosure
Factory treated with an antimicrobial additive to battle surface contamination.
VESA Mounting

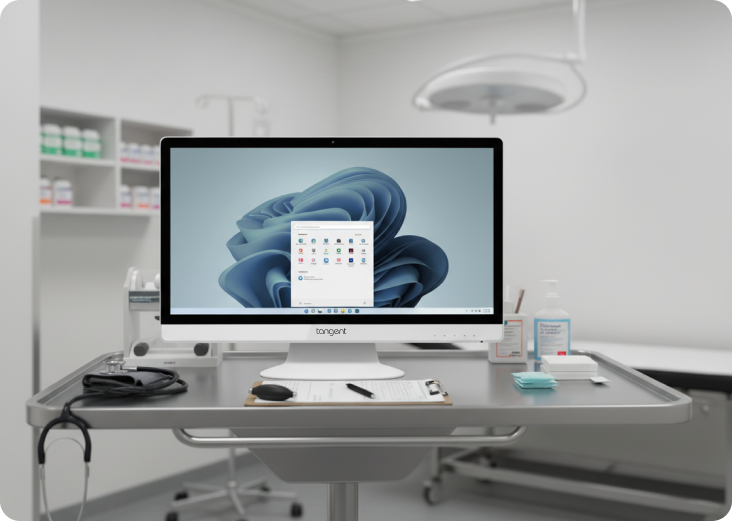

Can be mounted to an arm or point-of-care cart.
Medical LCD Monitors

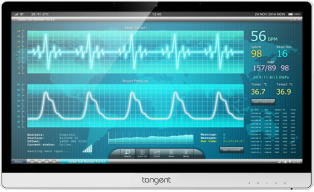

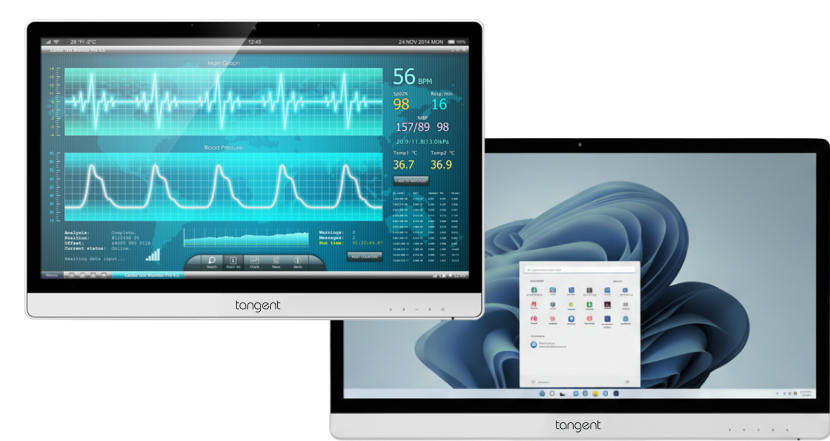

Medix CL Series Medical Monitor
15”, 21” and 24" Medical Monitor
High Brightness Display, Fanless Design
60601-1-2 4th Edition Certification, Anti-microbial enclosure
IP65 Rated, Optional DICOM support. Touchscreen, OSD Function Buttons, VESA 75/100 Mount with an Optional Stand.

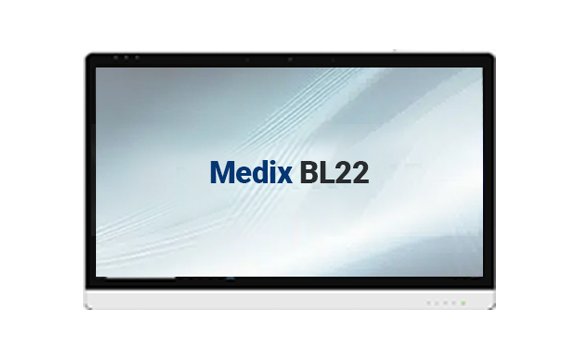

Medix BL22 Medical Monitor
22" Medical Monitor
High Brightness Display, Fanless Design
60601 Certification, Anti-microbial enclosure, Battery Powered
IP65 Rated, Optional Anti-Glare Film. Touchscreen, OSD Function Buttons, VESA Mount, Built-in Reading Light, Optional SSO or Keystroke RFID
BL22 Spec Sheet
Medix BL24 Medical Monitor
24" Medical Monitor
High Brightness Display, Fanless Design
60601 Certification, Anti-microbial enclosure, Battery Powered
IP65 Rated, Optional Anti-Glare Film. Touchscreen, OSD Function Buttons, VESA Mount, Built-in Reading Light, Optional SSO or Keystroke RFID.
BL24 Spec Sheet Medical LCD Monitor Tech Specs
| CL15 | CL21 | CL24 | |
|---|---|---|---|
| Display | |||
| LCD Size | 15.6” (16:9) | 21.5” (16:9) | 23.8” (16:9) |
| Max. Resolution | 1366 x 768 | 1920 x 1080 | 1920 x 1080 |
| Brightness (cd/m2 ) | 400cd/m2 (Standard Model) / 500cd/m2 (DICOM Model) | 250cd/m2 (Standard Model) / 350cd/m2 (DICOM Model) | 250cd/m2 |
| Contrast Ratio | 500:1 (typ.) | 3000:1 (typ.) | 3000:1 (typ.) |
| LCD Color | 16.7 million | 16.7 million | 16.7 million |
| Viewing Angle (H-V) | 170°(H) / 160°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| Response Time | 8ms (typ.) | 18ms (typ.) | 20ms (typ.) |
| Backlight MTBF | 50,000 hours | 30,000 hours | 30,000 hours |
| Touch | |||
| Touch Screen | Projected Capacitive (10 point) | Projected Capacitive (10 point) | Projected Capacitive (10 point) |
| Other Features | |||
| Cooling Method | Fanless | Fanless | Fanless |
| Internal Speaker | Yes | Yes | Yes |
| OSD Buttons | Yes | Yes | Yes |
| I/O | |||
| DVI | 1x DVI-D | 1x DVI-D | 1x DVI-D |
| HDMI | 1x HDMI 1.4a | 1x HDMI 1.4a | 1x HDMI 1.4a |
| DisplayPort | 1x DP | 1x DP | 1x DP |
| USB | 1x USB 2.0 ( Type B for Touch Screen uplink) | 1x USB 2.0 ( Type B for Touch Screen uplink) | 1x USB 2.0 ( Type B for Touch Screen uplink) |
| Others | 1 x Power Switch 5x Function Buttons | 1 x Power Switch 5x Function Buttons | 1 x Power Switch 5x Function Buttons Built-in LED reading light at botom of panel. |
| Power | |||
| Power Input Voltage | 12VDC | 12VDC | 12VDC |
| Power Connector | Barrel Plug 5.5mm (OD) x 2.5mm (ID) w/locking collar | Barrel Plug 5.5mm (OD) x 2.5mm (ID) w/locking collar | Barrel Plug 5.5mm (OD) x 2.5mm (ID) w/locking collar |
| Power Adapter | External Power Adapter, 12V @ 5.0A | External Power Adapter, 12V @ 5.0A | External Power Adapter, 12V @ 5.0A |
| Environment | |||
| Operating Temp. | 32°F - 104°F (0°C - 40°C) | 32°F - 104°F (0°C - 40°C) | 32°F - 104°F (0°C - 40°C) |
| Storage Temp. | -4°F - 140°F (-20°C - 60°C) | -4°F - 140°F (-20°C - 60°C) | -4°F - 140°F (-20°C - 60°C) |
| Relative Humidity | 10% - 90% non-condensing | 10% - 90% non-condensing | 10% - 90% non-condensing |
| Shock | Operating: 15g/0.53 oz, 11 ms, half sine wave | Operating: 15g/0.53 oz, 11 ms, half sine wave | Operating: 15g/0.53 oz, 11 ms, half sine wave |
| Vibration | Operating: 5 ~ 17 Hz , Amplitude: 0.1 17 ~ 500Hz , Acceleration: 1.0G | Operating: 5 ~ 17 Hz , Amplitude: 0.1 17 ~ 500Hz , Acceleration: 1.0G | Operating: 5 ~ 17 Hz , Amplitude: 0.1 17 ~ 500Hz , Acceleration: 1.0G |
| IP Level | IP65 (Front panel) IPX1 (Enclosure) | IP65 (Front panel) IPX1 (Enclosure) | IP65 (Front panel) IPX1 (Enclosure) |
| Certification | Meet CE/FCC/VCCI Class B, IEC60601-1-2 4th Edition | Meet CE/FCC/VCCI Class B, IEC60601-1-2 4th Edition | Meet CE/FCC/VCCI Class B, IEC60601-1-2 4th Edition |
| Physical | |||
| Enclosure Materials | ABS + PC plastics, antimicrobial enclosure | ABS + PC plastics, antimicrobial enclosure | ABS + PC plastics, antimicrobial enclosure |
| Dimension (W x H x D) | 16.9” x 11.8” x 3.2” (430 x 300 x 83 mm) | 21.26” x 14.76” x 3.07” (540 x 375 x 78 mm) | 23.85” x 15.67” x 2.58” (606 x 398 x 65.6 mm) |
| Weight | 10.1lb (4.6Kg) | 14.1lb (6.4Kg) | 19lb. (8.65Kg) |
| Mounting | VESA 75 & 100, Optional Stand | VESA 75 & 100, Optional Stand | VESA 75 & 100, Optional Stand |
| Warranty | |||
| Warranty | 1-Year Standard | 1-Year Standard | 1-Year Standard |
